DuraTRUE

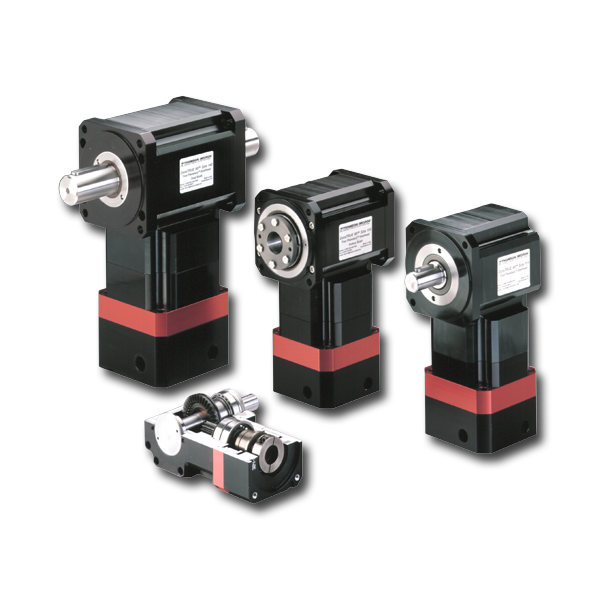

The DuraTRUE™ Series includes high-precision, TRUE Planetary™ gearheads mounted using our innovative RediMount™ system. A variety of shaft configurations allow you to design your system in the smallest envelope by eliminating the need for separate couplings. The “T” version even provides the ability to run two axes with one motor. We have many DuraTRUE™ models and ratios in stock for immediate delivery through our Gearhead Express program.

Features

High torque-to-size ratio
Backlash: 8 arc-min
Ratios available from 1:1 to 500:1
In-line, right-angle and “T” models
Self-relubricating
RediMount™ mounting system

Benefits

Compact gearheads with a variety of shaft configurations facilitate compact machine design
Low backlash helps eliminate positioning errors due to lost motion
Large selection allows for precise inertia matching, keeping servo system stable and in control
PowerTRUE™ gear technology provides high torque capacity in a compact package for right-angle applications
High rigidity optimizes system response
Self-relubrication eliminates costly maintenance and downtime
High radial load capacity allows mounting of pulleys and pinions directly on the output shaft
Quick, error-free mounting to almost any motor
