NemaTRUE

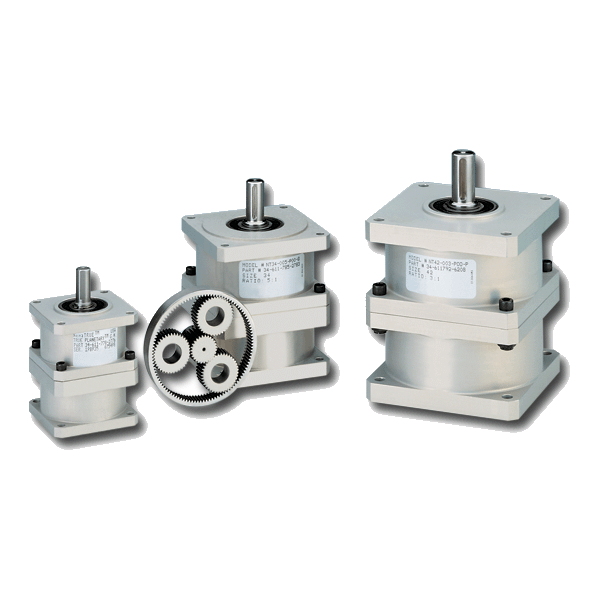

NemaTRUE gearheads are available in four standard NEMA sizes, three metric sizes, and both in-line and right-angle versions. All models feature our RediMountâ„¢ system for quick, error-free mounting to almost any motor. These precision gearheads provide a versatile and economical solution for many applications. We have many ratios in stock for immediate delivery through our Gearhead Express program.

Features

  • Backlash: 13 arc-min
  • In-line and right-angle models
  • Ratios available from 1:1 to 500:1
  • Sealed deep groove ball bearings for precise alignment of sun gear
  • HRC 55-60 steel gears
  • Anodized aluminum housing
  • RediMountâ„¢ system

Benefits

  • High radial load carrying capability
  • PowerTRUE gear technology provides high torque capacity in a compact package for right-angle applications
  • Superior wear resistance and increased backlash integrity
  • Fast, error-free mounting to almost any motor
  • Lightweight, corrosion-resistant housing
