With significant torque increases in the same motor size OEMs can achieve substantial performance improvement without changing the motor mounting or using more machine space. Designers needing to reduce machine size benefit from AKM2G’s ability to deliver increased power and torque density in a smaller footprint.
Higher power and torque density, lower inertia rotor design and Ready for Co-Engineering capability enable you to design your highest performing machine.
The AKM2G drops right into existing machine designs to increase performance, when compared to competing motors, without increasing the size of the motor.
Available standard with choice of single cable Kollmorgen Smart Feedback device, HIPERFACE DSL or EnDat 2.2 digital encoders. Dual cable resolver feedback also available standard along with user-specified feedback devices available through co-engineering. Available options support functional safety applications. For low voltage motors a standard commutating encoder option is available.

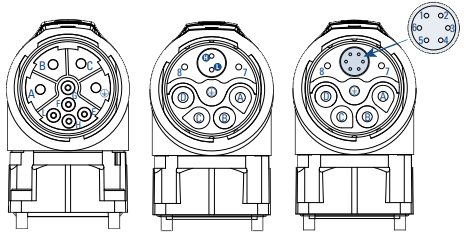

Single hybrid combined power and feedback cables for Kollmorgen Smart Feedback device, HIPERFACE DSL or EnDat 2.2 digital encoders. Dual independent power and resolver feedback cables are also available standard along with other optional configurations. Kollmorgen 2G cables provide the correct design for use in Kollmorgen 2G Systems that incorporate functional safety rated feedback devices.
