EverTRUE

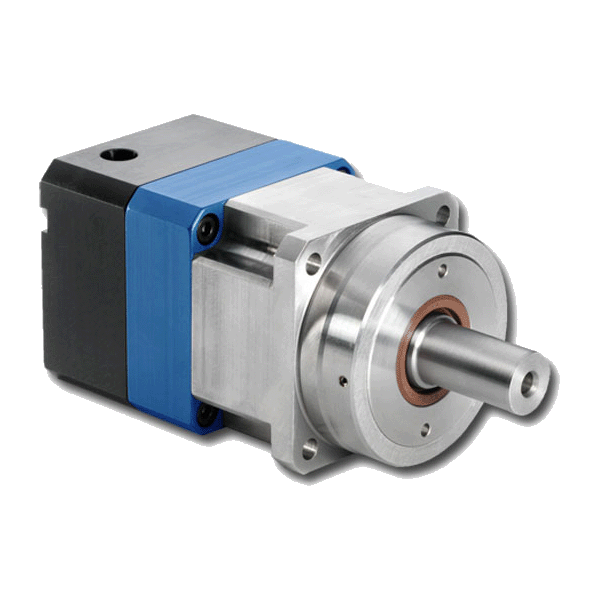

EverTRUE Series gearheads are designed for continuous duty applications. These gearheads are lubricated for life and rated to last a minimum of 30,000 hours while running 24 hours per day, 7 days per week. Like all TRUE Planetary™ gearheads, the EverTRUE Series is designed for maximum torque capacity, high efficiency and low backlash.

Features

  • Backlash: 4 arc-min
  • Ratios available from 4:1 through 100:1
  • Single piece output shaft
  • High-capacity tapered roller bearings and double full-complement needle bearings
  • Continuous-duty grease
  • Single-piece stainless steel output housing with integral internal gear
  • Input bearing with thermal compensation feature
  • Low operating temperatures
  • Rated at 30,000 hours life in continuous operation
  • Efficiency: 95%
  • Compatible with RediMount™ mounting system

Benefits

  • Designed to run 24 hours a day, 7 days a week
  • High axial and radial load carrying capacity
  • High torque capacity
  • Smooth, quiet operation with minimal backlash
  • Quick, error-free mounting to almost any motor
  • Corrosion-resistant housing
  • “Lubed For Life” and virtually maintenance-free
