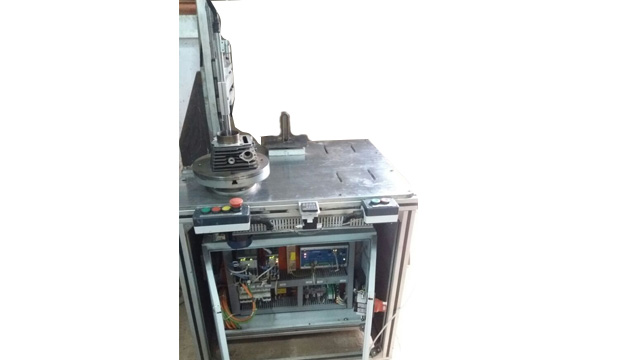

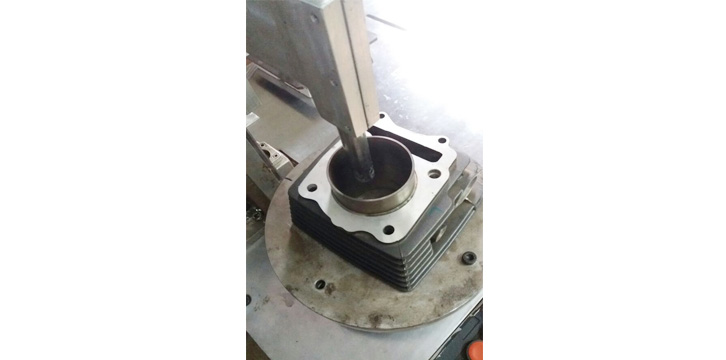

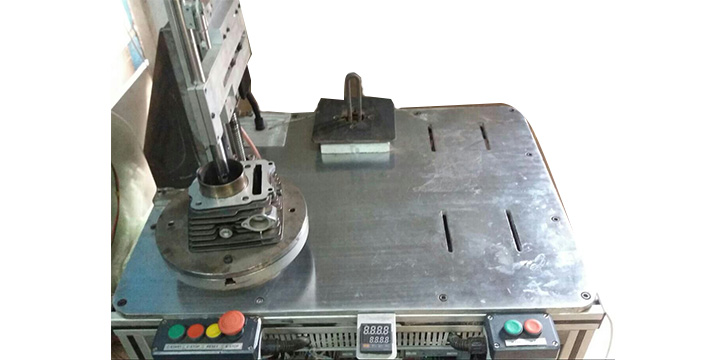

This metrology equivalent measuring equipment is designed to Inspect the Cylindricity, Ovality and Inner Diameter of Cylinder Head at heated temperature of 200 Degrees
PDMM , Cart-Ridge with AKM-Brake
Confocal Laser Sensor – 1 Micron Accuracy
Equipment Measurement Accuracy – 5 Microns
Complete Offline Simulation with KAS and LabVIEW
Measurement with Temp Max @ 200 Deg C

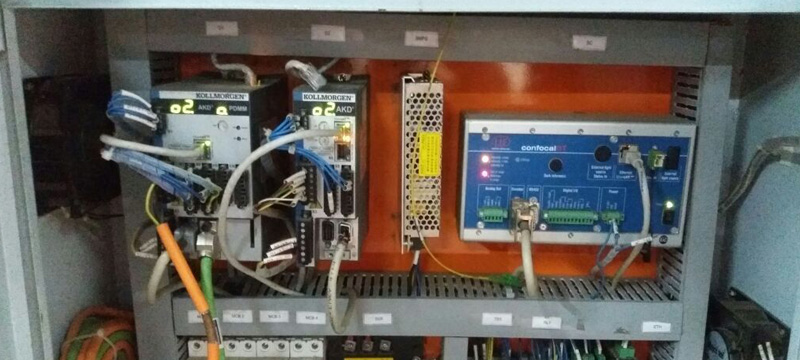

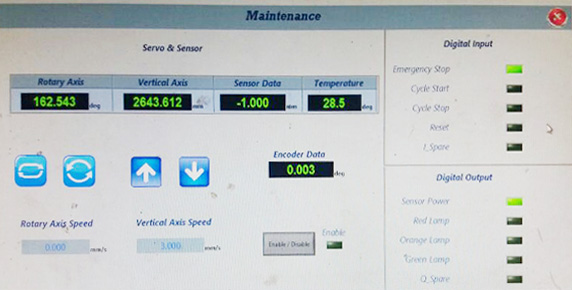

Confocal Sensor is used with Kollmorgen Cartridge Motor for high precision measurements. Its a 2 Axis machine with vertical axis and Indexing Axis. For Each Axis Rotaion 1000 Data Points captured and 3D Model Plotted with Measurements of Cylindricity, Ovality and Inner Diameter.
Confocal Sensor is used with Kollmorgen Cartridge Motor for high precision measurements. Its a 2 Axis machine with vertical axis and Indexing Axis. For Each Axis Rotaion 1000 Data Points captured and 3D Model Plotted with Measurements of Cylindricity, Ovality and Inner Diameter.
Confocal Sensor is used with Kollmorgen Cartridge Motor for high precision measurements. Its a 2 Axis machine with vertical axis and Indexing Axis. For Each Axis Rotaion 1000 Data Points captured and 3D Model Plotted with Measurements of Cylindricity, Ovality and Inner Diameter.
Confocal Sensor is used with Kollmorgen Cartridge Motor for high precision measurements. Its a 2 Axis machine with vertical axis and Indexing Axis. For Each Axis Rotaion 1000 Data Points captured and 3D Model Plotted with Measurements of Cylindricity, Ovality and Inner Diameter.
