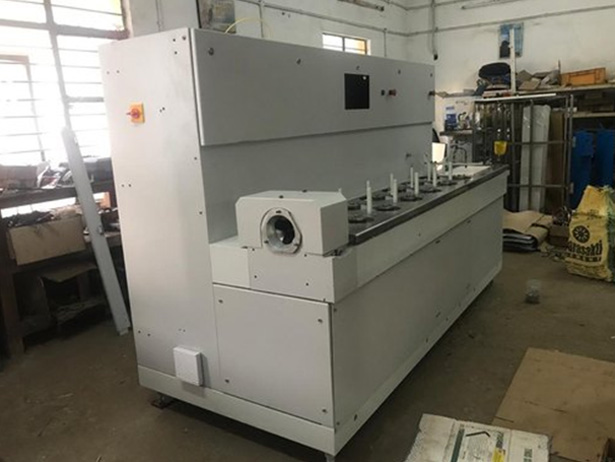

Our rope sizer takes a rope of candy and gradually reduces it to the desired rope diameter. The sizing roller boxes are from modular construction, allowing easy modification or future retro fitting. With the new design the roller boxes are simple and fast to dismantle for maintenance purposes. The machine is available with servo driven process.
AXIS :- 7 Axis sync
SPEED:-3000 RPM
MACINE TYPE :- End user Customized
POWER CONSUMPTION:- 5 KVA
STAGES : 7
MACHNE WEIGHT :- 2 TONS
OUTPUT: 200 METERS ROPE PER MIN
PDMM , Cart-Ridge with AKM-Brake
Confocal Laser Sensor – 1 Micron Accuracy
Equipment Measurement Accuracy – 5 Microns
Complete Offline Simulation with KAS and LabVIEW
Measurement with Temp Max @ 200 Deg C
The machines have been designed to last many years in the confectionery production environment. With precision machined components made to exacting standards the user can expect years of trouble-free use with minimal spare parts requirements.

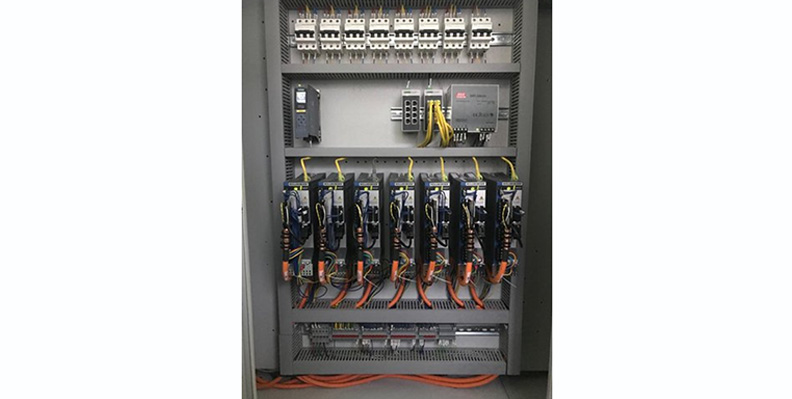

All electrical components are located in sealed enclosures with hinged doors for access. Interlocked guards are fitted, giving protection to the operator from noise and movement hazards. All machines meet current health and safety and ‘CE’ standards.
The machines have been designed using open framed stainless steel construction. Improved hygiene and access for cleaning has been considered to reduce running costs.
The range of machines can handle many types of confectionery products without the need to change any parts – hard candy, toffee, chewy sweets in solid or centre-filled form can all be used to feed either cut&wrap or candy forming lines.
Rope size machine consists of semi round grooved and knurled rope wheel sets. One set is provided vertically and other are horizontal. To form exact size of rope for Toffee / Candy size, the thin Toffee / Candy rope passes through decreasing rope wheel set and forms exact size of rope required. Adjusting rope wheel set by means of graduated lever which is provided to get various size of rope according to varieties of Toffees and Candies. Different rollers can be supplied to suit requirements. They will reduce the candy rope from a large diameter to a smaller one. Each set of rollers can be independently adjusted via a thumb screw located above each roller. The Rope Sizer Machine consists of semi round grooved and knurled rope wheel sets. The machine can be used for rope sizing both candy and caramel products. The machine is driven via a motor gearbox unit with an electronic variable speed unit.
